The Monza Frame across a Century
1931

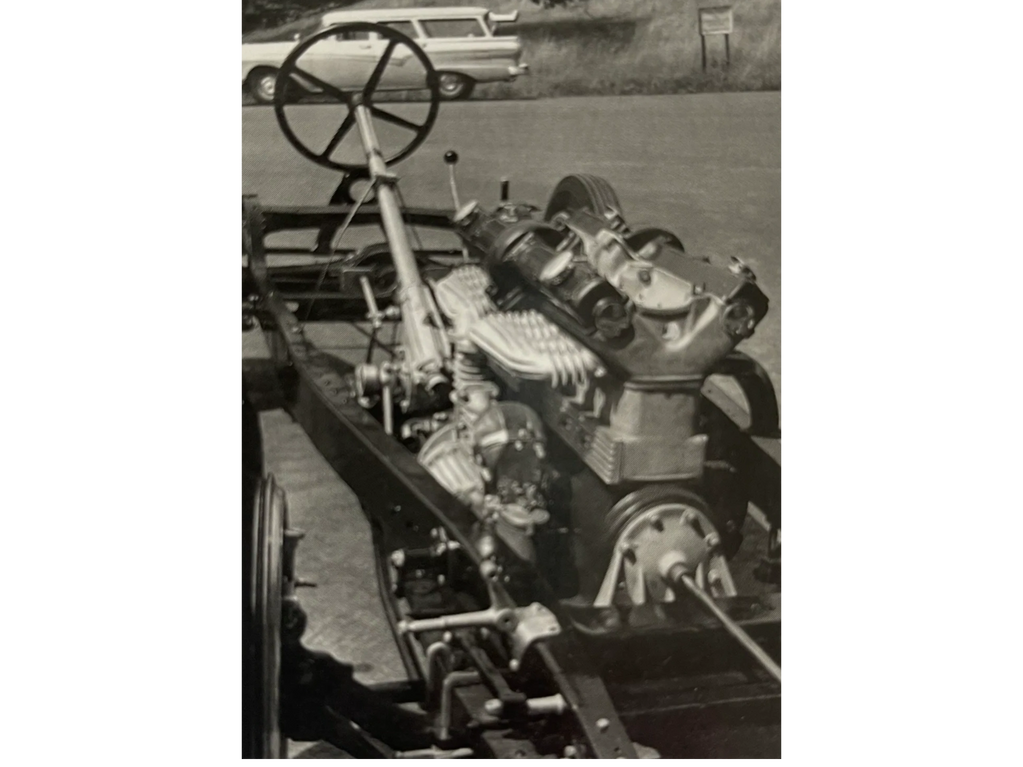

Original Monza Frame. This frame was manufactured in 1931 with number 2111006 and had been displayed in Lars Anderson Museum in Brooklins, Massachusetts.
This pictures was taken in the 60´s after a long restoration work.
A total of 12 Monza Frames were manufactured in the 1930´s. Later, frames of different type were converted into "Monza" spec.
2021

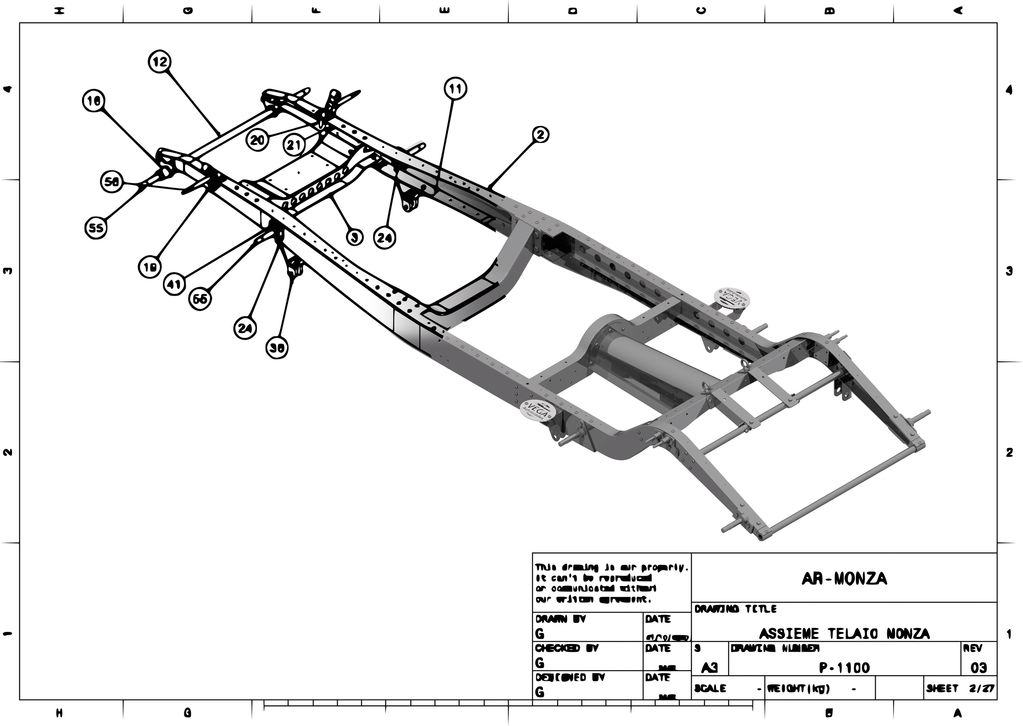

Computer drawing of the Monza Frame after accurate re-engineering and structural assessment of the 1931 frame.
The original drawings are missing but its measures can be deducted from the "Corto" frame, the main difference being the front leaf spring installation. It was presented on the hystorical Monza track in 1931.
Beyond 2021

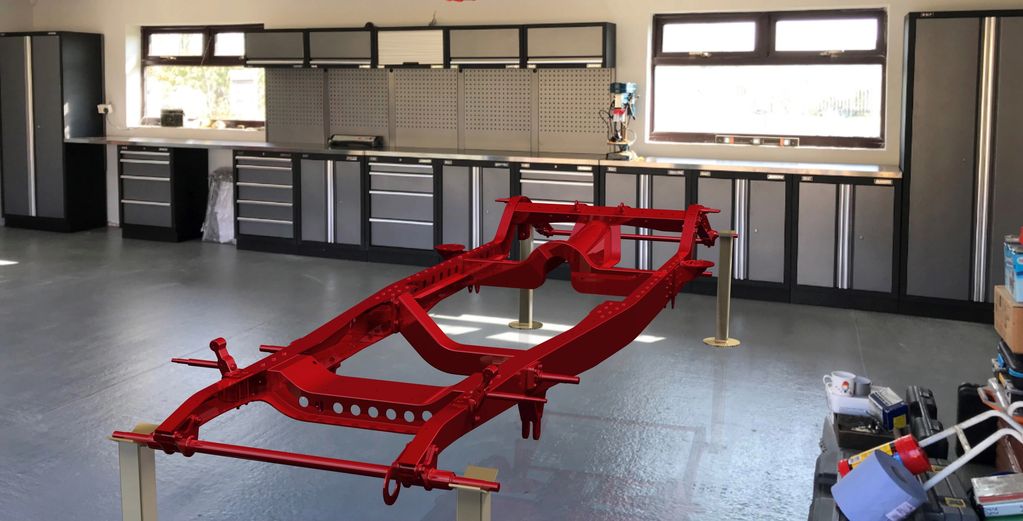

Rendering picture of the Monza Frame after assembly.
The re-design was extended up to the thiniest detail so a realistic rendering can retrieve the beauty of this car frame.
The computer re-design will preserve the Monza Frame in the decades to come.
